SEAMLESS CASING AND TUBINGS

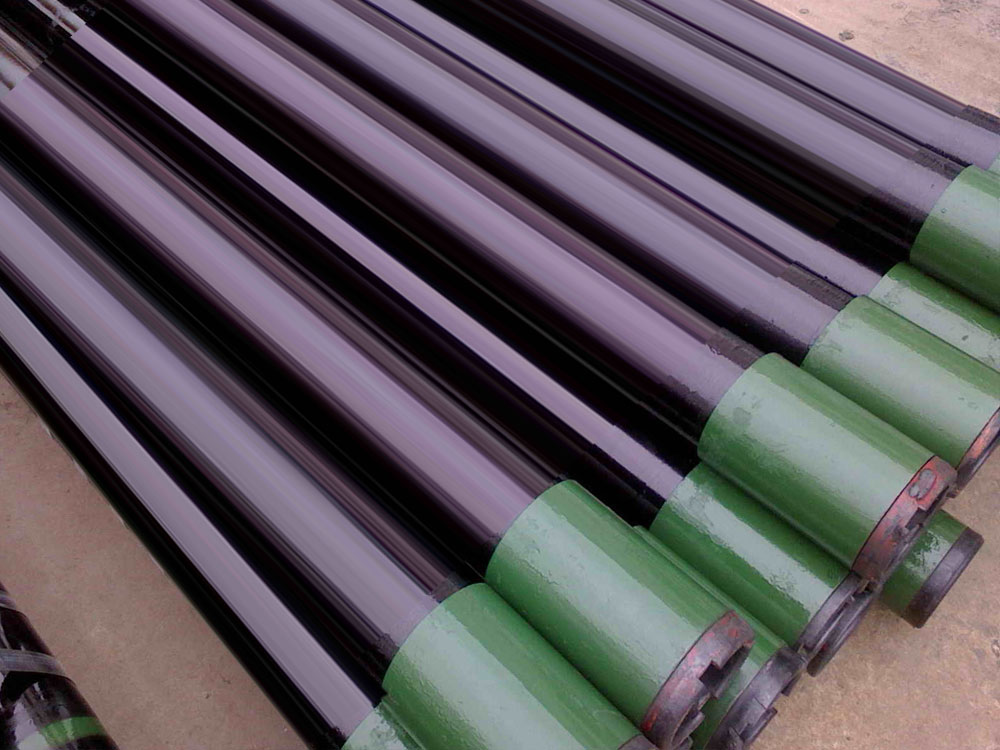

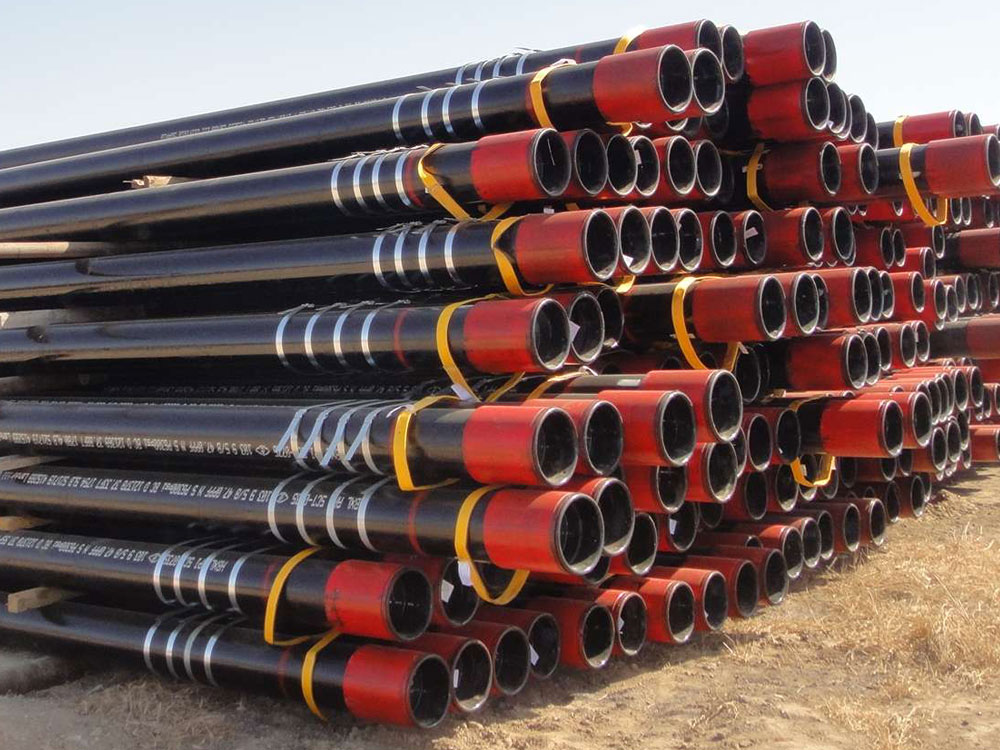

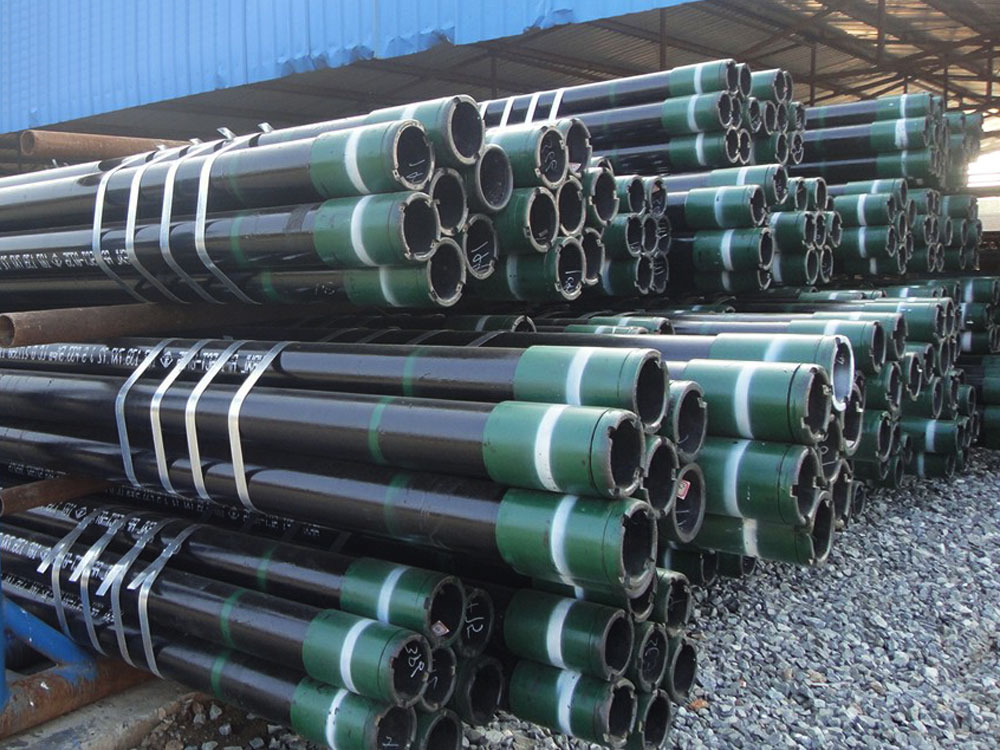

    Seamless Casing and Tubing
    Field Of Application Oil and Natural Gas Exploration
    Water and Oil well Drilling

    Production Standards:

    Tubing
    API 5CT- GR. H - 40, J/K - 55, L/N - 80, C - 90/95
    GR.T - 95, P-110, Q-125

    Casing
    API 5CT - GR. H - 40, J/K - 55, L/N - 80, C - 90/95
    GR. T - 95, P - 110, Q - 125

    Tests Performed
    Leakness Tightness Test, Hydrostatic Test, Eddy Current Test
    Destructive Tests Flattening & Bending
    Non Destructive Test - Electromagnetic (MPI) or Ultrasonic Test
    Chemical Analysis and Other Tests as Per Api Specs.

    Sizes

    Tubing: Outside Diameter 2 3/8 Inch - 4 1/2 Inch
    Weight 4.7 Lb/Ft - 12.75 Lb/Ft

    Casing : Outside Diameter 4 1/2 Inch - 20 Inch
    Weight 9.5 Lb/Ft - 133 Lb/Ft

    Ends

    Tubing: Ends Upset (EUE), Non Upset (NUE)
    Special Sp-Ms Threaded Tubing & Coupling
    (Gas Tight - Fully Vam Interchangable)
    Metal Seal Ring & Coupling or With Plain Ends

    Casing: Buttress Threaded (BTC), Short Round Thread (STC)
    Long Round Thread (LTC), Extreme Line (EXL)

    Lengths

    Tubing: Range 1 20 Ft - 24 Ft
    Range 2 28 Ft - 32 Ft

    Casing : Range 1 16 Ft - 25 Ft
    Range 2 25 Ft - 34 Ft
    Range 3 34 Ft - 48 Ft

    Protection
    External Coated With Black Mill Varnish
    Thread Protected With Composite Metal - Plastic End Caps

    Mill Test Certificates
    Issued Upon Request According To EN 10204, DIN 50049/3.1B
    Third Party Inspection Can Also Be Performed On Request.
